ADSL Compliance
‧Compliant with ADSL standard
- Full-rate ANSI T1.413 issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
‧Compliant with ADSL2 standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
‧Compliant with ADSL2+ standard
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)
Network Protocols and Features
‧IPv4 or IPv4/IPv6 dual stacks
‧NAT, static (v4/v6) routing and RIP-1/2
‧IPv6 stateless/stateful address auto-configuration
‧IPv6 router advertisement
‧IPv6 over PPP
‧DHCPv6
‧IP Tunnel IPv6 in IPv4 (6RD)
‧IP Tunnel IPv4 in IPv6 (DS-Lite)
‧Universal Plug and Play (UPnP) compliant
‧Dynamic Domain Name System (DDNS)
‧Virtual server and DMZ
‧SNTP, DNS relay, IGMP proxy and IGMP snooping for video service
‧MLD proxy and MLD snooping for video service
‧Management based-on IP protocol, port number and address
‧Supports port-based Virtual LAN (VLAN)
Firewall
‧Built-in NAT firewall
‧Stateful Packet Inspection (SPI)
‧DoS attack prevention
‧Packet filtering (v4/v6) - port, source IP address, destination IP address, MAC address
‧URL content filtering (v4/v6) - string or domain name detection in URL string
Quality of Service Control
‧Supports the DiffServ approach
‧Traffic prioritization and bandwidth management based-on IPv4/IPv6 protocol, port number and address
Virtual Private Network (VPN)
‧16 IPSec VPN tunnels
‧ IKE key management
‧ DES, 3DES and AES encryption for IPSec
‧ PAP/CHAP/MS-CHAPv2 authentication for PPTP
‧ IPSec pass-through
‧ GRE (Generic Routing Encapsulation) tunnel
ATM and PPP Protocols
‧ATM Adaptation Layer Type 5 (AAL5)
‧Multiple protocol over AAL5 (RFC 2684, formerly RFC 1483)
‧Bridged or routed Ethernet encapsulation
‧VC and LLC based multiplexing
‧PPP over Ethernet (PPPoE)
‧PPP over ATM (RFC 2364)
‧Classical IP over ATM (RFC 1577)
‧MAC Encapsulated Routing (RFC 1483 MER)
‧OAM F4/F5
IPTV Application*2
‧IGMP snooping and IGMP proxy
‧MLD snooping and MLD proxy
‧Virtual LAN (VLAN)
‧Quality of Service (QoS)
Wireless LAN
‧Compliant with IEEE 802.11a/b/g/n standards

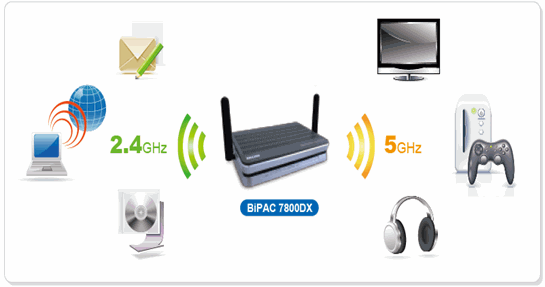

‧2.4GHz and 5.0GHz frequency bands
‧Up to 600Mbps wireless operation rate
‧WPS (Wi-Fi Protected Setup) for easy setup
‧Supports WPS v2
‧64/128 bits WEP supported for encryption
‧Wireless security with WPA-PSK/WPA2-PSK
‧Multiple wireless SSIDs with wireless guest access and client isolation
‧WDS repeater function
USB Application Server
‧3G/4G LTE USB modem
‧Storage/NAS: FTP server, samba server, and DLNA media server
‧Print server
Management
‧Easy Sign-On (EZSO)
‧Web-based GUI for remote and local management (IPv4/IPv6)
‧Firmware upgrade and configuration data upload and download via web-based GUI
‧Embedded Telnet server for remote and local management
‧SNMP v1, v2, MIB-I and MIB-II support
‧Supports DHCP server/client/relay
‧TR-069*1 supports remote management
‧Available syslog
‧Mail alert for WAN IP changed
‧Auto failover and fallback
‧Push service
Hardware Specifications
Physical Interface
‧WLAN: 2 fixed antennas
‧DSL: ADSL port
‧USB 2.0 supports storage service, print server, and 3G/4G LTE USB modem
‧Ethernet: 4-port 10/100/1000M auto-crossover (MDI/MDI-X) switch
‧EWAN: Ethernet port #4 can be configured as a WAN interface for broadband connectivity
‧Factory default reset button
‧WPS push button
‧Power jack
‧Power switch
Physical Specifications
‧Dimensions: 9.04" x 6.10" x 1.69" (229.5 mm x 155 mm x 43 mm)
Power Requirements
‧Input: 15V DC, 1.6A
Operating Environment
‧Operating temperature: 0˚C ~ 40˚C
‧Storage temperature: -20˚C ~ 70˚C
‧Humidity: 20% ~ 95% non-condensing
Models & Standards Supported
‧BiPAC 7800DXA:
Supports Annex A and Annex M (Annex A and Annex M: ADSL over POTS)
‧BiPAC 7800DXU:
Supports Annex B and U-R2 (Annex B and U-R2: ADSL over ISDN)
*Notes:
1. On request for Telco/ISP projects.
2. IPTV application may require subscription to IPTV services from a Telco/ISP.
3. This is only applicable for Australia and New Zealand.
4. Specifications on this datasheet are subject to change without prior notice.
V05312013
|
