BiPAC 3011W

BiPAC 3011W
Wireless-N 150Mbps USB Adapter

• Compliant with 802.11n, 802.11g, and 802.11b network devices
• Built-in Tx and Rx antenna
• Maximum operation rate 150Mbps
• Supports WEP, WPA, WPA2, and 802.1x for WLAN security
• WPS (Wi-Fi Protected Setup) for easy setup
• QoS enhancement for multimedia applications*
• Complies with IEEE 802.11h for spectrum and transmit power
management
• Supports Infrastructure / Ad-Hoc mode.
• USB 2.0 attached interface
• Universal Plug and Play (UPnP)
• Supports auto-installation and diagnostic utilities
• Supports Windows, Linux, Mac and most operating systems
• Ideal for home SOHO and office users

Key Features & Benefits

Features & Specifications

Application Diagram

Benefits

Upgrade Your Wireless Access
The Billion BiPAC 3011W offers portable high-speed wireless connectivity through any available USB port on your laptop or desktop. With faster wireless data operation rates, the BiPAC 3011W USB Adapter offers sufficient bandwidth and range to stream video, voice, music and all entertainment resources currently available on the internet. Now you can easily upgrade to a Wireless-N network and enjoy high-speed (150Mbps) network access!

Optimal Priority and Secure Traffic
The BiPAC 3011W supports both 64/128-bit WEP (Wired Equivalent Privacy) and Wi-Fi Protected Access (WPA/WPA2) for secure wireless LAN connections. It also supports WMM (Wi-Fi Multimedia) which ensures stable transmission quality for multimedia applications by granting optimal priority to traffic.

Ease of Use
The BiPAC 3011W features a convenient utility for users to scan available networks and secure preferred networks. It supports two operating modes – infrastructure and ad-hoc. In the infrastructure mode, the BiPAC 3011W allows you to connect to the Internet through a wireless AP and access network resources. It can also operate in Ad-Hoc mode without an AP, so that you can run peer-to-peer gaming and share files with your friends without the need of a wireless router. Ad-hoc networks also work well as a temporary fallback mechanism if the access points or routers stop functioning.

Application Diagram

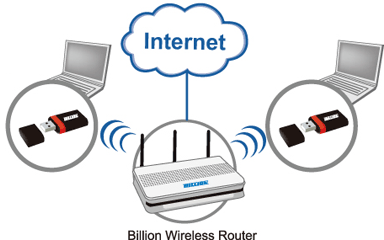

Infrastructure Mode
Applications:
1. Internet Access
2. File sharing
3. On-line gaming
4. On-line video conferencing

BiPAC 7300N - Draft 802.11n ADSL2+ / Broadband Router

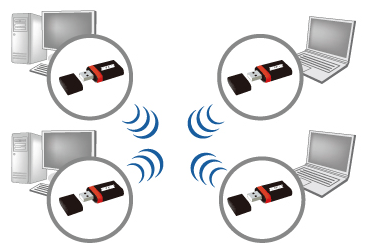

Ad-Hoc Mode
Applications:
1. Peer-to-peer gaming
2. File sharing
3. Internal conferencing

BiPAC 7300N - Draft 802.11n ADSL2+ / Broadband Router

Features & Specifications

Standards
• IEEE 802.11n
• IEEE 802.11g / b
• IEEE 802.11h

Interface
• Complies with USB 2.0 A-Type
• Supports full-speed (12Mbps) and high-speed (480Mbps)

Frequency Band
• 2.400GHz ~ 2.4835GHz

Modulations
• IEEE 802.11b: DSSS (CCK / DQPSK / DBPSK)
• IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
• IEEE802.11n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data Rates
• IEEE 802.11b: 11, 5.5, 2 and 1Mbps; Auto-fallback
• IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps; Auto-fallback
• IEEE 802.11n (20MHz): 75 Mbps (T) / 75 Mbps (R)
• IEEE 802.11n (40MHz): 150 Mbps (T) / 150 Mbps (R)

Access Protocol
• CSMA/CA

Wireless Security
• 64/128bit WEP
• WPA (TKIP with IEEE 802.1x)
• WPA2 (AES with IEEE 802.1x)
• WPS (Wi-Fi Protected Setup) for easy setup

Transmitting Power
• 802.11n：up to 14 ± 1 dBm
• 802.11g：up to 15 ± 1 dBm
• 802.11b：up to 17 ± 1 dBm

Operating Mode
• Ad-hoc mode / infrastructure mode

Number of Operational channels
• U.S. 1-11
• Japan 1-13, 14
• Elsewhere Worldwide 1-13

Quality of Service (QoS) Enhancement
• WMM (Wi-Fi Multimedia) function for multi-media data bandwidth requirement.

Supported Operating Systems
• Mac 10.4/10.5
• Linux
• Windows 7 32/64bit, Vista 32/64bit, XP 32/64bit, 2000

Receiver Sensitivity
• 802.11n -70dBm(150Mbps)
• 802.11g -78dBm(54Mbps)
• 802.11b -85dBm(11Mbps)

Antenna
• Internal one antenna for TX and RX

Dimensions
• 49 (L) x 26 (W) x 10.4 (H) mm

LED Display
• Link/ Act

Temperature Range
• Operating temperature: 0°C ~ 60°C
