BiPAC 7800DXL - Triple-WAN Dual-Band Wireless-N 600Mbps 3G/4G LTE ADSL2+/Fibre Broadband Router
BiPAC 7800DXL

BiPAC 7800DXL
Triple-WAN Dual-Band Wireless-N 600Mbps 3G/4G LTE ADSL2+/Fibre Broadband Router

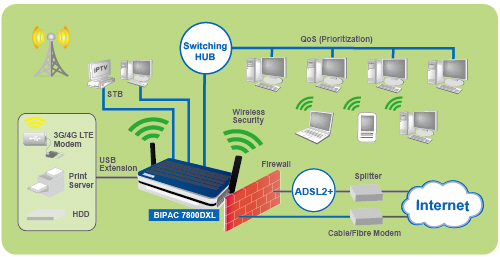

The Billion BiPAC 7800DXL is a fibre-ready triple-WAN ADSL2+ dual-band modem router, an all-in-one advanced device including concurrent dual-band Wireless-N 600Mbps (2.4GHz and 5GHz), Gigabit Ethernet, 3G/4G LTE, and NAS (Network Attached Storage) in one unit. As well as being IPv6-capable, the BiPAC 7800DXL ADSL2+ router supports superfast fibre connections via dual-WAN connectivity through a Gigabit Ethernet WAN port. It also has a USB port, allowing the device to act as a print server as well as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) and FTP (File Transfer Protocol) access. Moreover, the USB port can host a 3G/4G LTE modem connecting to the 3G/4G LTE network for Internet access. With an array of advanced features, the Billion BiPAC 7800DXL delivers a future-proof solution for ADSL2+ connections, superfast FTTC and ultra-speed FTTH (Fibre-To-The-Home) network deployment and services.

7800dxl

BiPAC 7800DXL - Triple-WAN Dual-Band Wireless-N 600Mbps 3G/4G LTE ADSL2+/Fibre Broadband Router




Key Features
  • Triple-WAN ports for 3G/4G LTE, ADSL2+, Gigabit Ethernet WAN (EWAN) for broadband connectivity
  • Simultaneous dual-band Wireless-N 600Mbps (2.4GHz and 5GHz)
  • Gigabit WAN and LAN
  • Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput
  • IPv6 ready (IPv4/IPv6 dual stacks)
  • USB port for print server, NAS, DLNA media server, and 3G/4G LTE USB modem
  • SNR adjustments to achieve highest sync speeds
  • Monitoring of individual LAN ports
  • QoS for traffic prioritization and bandwidth management
  • Broadcom chipset for better stability
  • Multiple wireless SSIDs with wireless guest access and client isolation
  • Supports IPTV applications*2
  • NBN (National Broadband Network) ready*3
  • Supports port-based Virtual LAN (VLAN)
  • Available Syslog
  • Dynamic Domain Name System (DDNS)
  • Ideal for SOHO and home users
Benefits

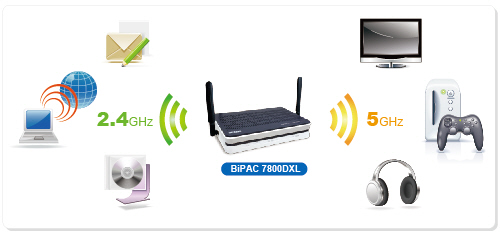

Maximum Performance Dual-band Router
Featured with simultaneous dual-band technology, the BiPAC 7800DXL can run both 2.4GHz and 5GHz frequency bands at the same time, offering ultra-fast wireless speeds of up to 600Mbps and multiple SSIDs on both bands. The BiPAC 7800DXL, by adopting this state-of-the-art technology, allows for multiple-demand applications, such as streaming HD videos and multiplayer gaming simultaneously. With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed of an 802.11a/b/g network device. It supports a data rate of up to 600Mbps (2.4GHz and 5GHz) and is also compatible with 802.11a/b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand your wireless network without the need for any external wires or cables.

3G/4G Mobility and Always-On Connectivity
With the BiPAC 7800DXL you can connect a 3G/4G LTE USB modem to its built-in USB port, allowing you to watch movies, download music or access e-mail no matter where you may be. You can even share your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed line access. The auto fail-over feature ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G/4G LTE network in the event that your ADSL/fibre/cable line fails. The BiPAC 7800DXL will then automatically reconnect to the ADSL/fibre/cable connection when it's restored, reducing connection costs. These features are perfect for office situations where a constant and uninterrupted connection is critical.

Experience Gigabit
The BiPAC 7800DXL has four Gigabit LAN ports and the fourth port can be configured as a WAN port if required. This EWAN offers another broadband connectivity option for connecting to a cable, VDSL, fibre or second ADSL modem. The BiPAC 7800DXL again offers users convenience and optimal network performance with data rates reaching up to 1Gbps.

Pathway to the Future
The BiPAC 7800DXL fully supports IPv6 (Internet Protocol Version 6), launched as the current IPv4 range is filling up, and IPv6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual stack means the router is capable of running IPv4 and IPv6 in parallel during the transition period. With Billion IPv6 enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid deployment) are supported to be adapted easily into service provider’s IPv4/IPv6 network.
