BiPAC 2080HC

BiPAC 2080H series
128Mbps HCNA Coax Ethernet Bridge

The most compact HCNA coaxial cable adapter, Billion's BiPAC 2080HC provides a powerful broadband connection while wire replacement enables you to set up a private network at home with existing coaxial cable to enjoy video content over the Internet.

Key Features

128Mbps HCNA coax port as home network backbone by using existing coaxial cable
Two 10/100Mbps Fast Ethernet ports for FTTH, ADSL/Cable modem and Ethernet terminals (PC, set top box.)
Distance up to 4,000 feet on RG59 wires
Filter built-in to eliminate noise from TV
QoS priority and mapping support
Plug-and-play
Compact size

Benefits

No Additional Network Wiring is Necessary
You may just find a coax connector in the wall, put the coaxial plug into the connector, and you can then be ready to access broadband Internet.

No Extra Utility is Necessary
No utility, no settings, just link. Simply plug-and-play.

High-speed Transfers
Via the RJ-45 Ethernet ports, you can connect the bridge device with Ethernet-interface devices such as set top boxes, camera servers, and switches/hubs. The high speed of 128Mbps will enable you to enjoy Video-On-Demand (VOD) services or the Multimedia-On-Demand (MOD) services.

Easy to Extend Your Network
With BiPAC 2080H series devices, SOHOs can even quickly extend or flexibly change the existing LAN environment. No re-wiring needed and no more trouble.

Key Features & Benefits

Features & Specifications

Application Diagram

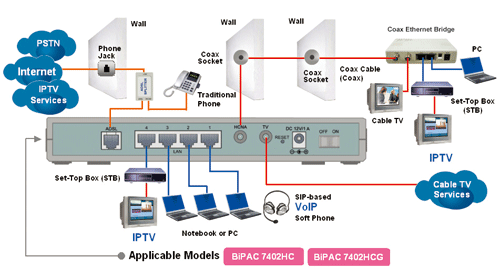

Illustration of Home Networking with HPNA 3.0 Coax

BiPAC 2080H series - 128Mbps HCNA Coax Ethernet Bridge

Application Diagram of Home Networking with HomePNA 3.0 Coax

BiPAC 2080H series - 128Mbps HCNA Coax Ethernet Bridge

Features & Specifications

Network Standards
• HomePNA 3.0 over coaxial cable (HCNA)
• IEEE 802.3 10M Ethernet
• IEEE 802.3u 100M fast Ethernet
• IEEE 802.3x flow control

Connectors
• Ethernet: two RJ-45 connectors
• HCNA: two F-Type female coax connectors, one for HCNA, and the other one for TV Transmission Power and Spectrum
• 0 +/- 1 dBm
• 4 ~ 21MHz

Transmission Speed and Distance
• Up to 128Mbps
• Up to 4000 Feet (-176dBm/Hz Noise Floor)

Quality of Service Control
• Priority mapping based on IEEE 802.1p
• Priority queue based on 802.1p/TOS
• IEEE 802.1Q Tag VLAN pass through
• Guaranteed QoS based on HomePNA3.0 parameterized QoS

Fast Ethernet Interface
• 10/100Mbps auto negotiation
• MDI/MDI-X auto crossover

DIP Switch
• To select the master of Sync mode operation

Indicators
• "Power" LED
• HCNA “Link/Activity” LED
• HCNA “Sync Mode” LED
• Ethernet “Link/Activity” LED x 2

EMI/EMC and Safety
• Comply with FCC Part 15
• Comply with CE
• UL/cUL and CSA

Environmental Conditions
• Operating temperature:0ºC ~ 40ºC (32ºF ~ 104ºF)
• Storage temperature:-10ºC ~ 65ºC (14ºF ~ 149ºF)
• Operating humidity:10% ~ 95%, non-condensing

Power Requirement
• External power supply: 5 VDC
• Power consumption: < 5 Watts

Physical Dimension
• 114mm (W) x 67mm (D) x 25mm (H)

Unit Weight
• 120g
